主要應用

高能二管泵浦，全固態，　Q-SWITCHEDLASER

高能二管泵浦固體，　q開關激光在1064nm的特性

　單脈沖能量高、短脈沖，時間和峰值功率高,

　廣泛用于PIV、生活,庫,icp，科學研究、激光加工、軍事、等等。

產品特點

用于透明固體物質LIBS光譜檢測的激光器。具有窄脈寬、高單脈沖能量等特點。

窄脈寬、高能量，可以有效擊穿各類氣體，適用于氣體及液體樣品LIBS光譜檢測

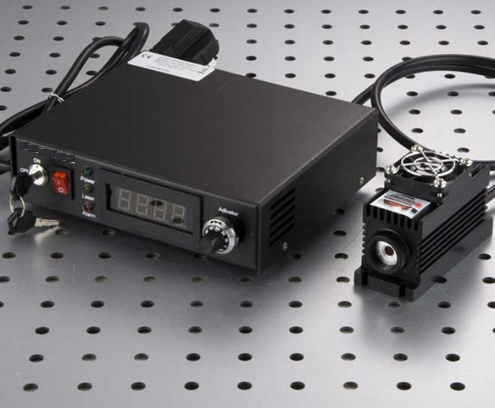

1064 LIBS激光器

（100MJ-500MJ）

NBET-A-1064/50~200Mj

HIGH ENERGY LAMP PUMPED SOLID STATE Q-SWITCHED LASER

High energy lamp pumped solid state Q-switched laser at 1064nm has the

features of high single pulse energy，short pulse duration, high peak power，

and without water cooling machine, which is widely used in LIF, LIBS, ICP-MS,

Raman, scientific research, military, and so on.

技術參數

Wavelength (nm)      1064±1

Operating mode Q-switched: EOM (Electro-optic modulation)

Single pulse energy (mJ    50   100   150   200

Pulse duration (ns)        <10 <10 <10 <10

Rep. rate (Hz) 1~10 (adjustable)

Energy stability<3%

Beam divergence, full angle (mrad) ~2 ~1 ~1 ~1

Beam diameter (mm) <6 <6 7 7

Warm-up time (minutes) <15

Beam height from base plate (mm)123

Cooled method Water to Air Cooled

Operating temperature (℃) 20~25

Power supply (220/110VAC) PSU-NBET-A(3U)

Expected lifetime of lamp (pulses) 107 ~108

Warranty period 1 year

Available Options SHG Module; Jitter :~1ns（Sdev）; Accessories
